ISPACs – Got To Love Em

Being a DBA and working with various teams, I have become accustomed to deploying SSIS packages. I’ll even go back further and, dare I say, DTS packages (I hope everyone did not just fall on the floor while reading that). Now-a-days this Database Professional does more deploying packages than developing them; with that said I was pleased when 2012 came along.

When the newer version of SSIS was released it offered several new features, one of those features was building a deployment model thus producing an ISPAC file. I remember first coming across this and thinking, “Wow, this is all packaged up”. While I won’t go into the specifics of how to build the deployment I will show you the step by step process of deploying the ISPAC file.

Step 1

Locate the ISPAC file. Once located double click on the ISPAC file to gain entry into the deployment wizard.

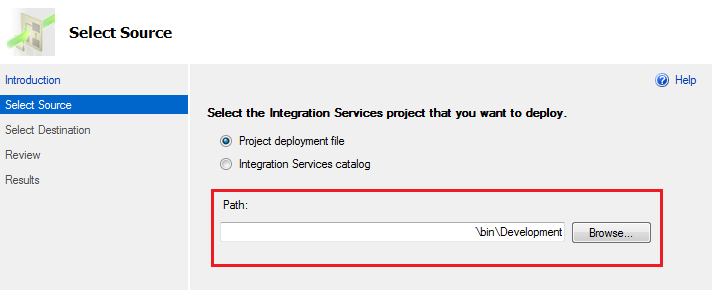

Step 2

What kind of Integration Services project do you want to deploy? Since we are dealing with an ISPAC file on our local directory we will select the source path we found from Step 1. Simply browse to the path location and click ok.



Step 3

So you have your ISPAC file selected and you want to deploy it; where does it go? You have the capability to supply any Server Name for rapid deployment. The path reflects the SSISDB catalog which is required for SSIS 2012 packages to be deployed. If your SSIS package is already on the server you can simply choose to overwrite the existing file at deployment time.

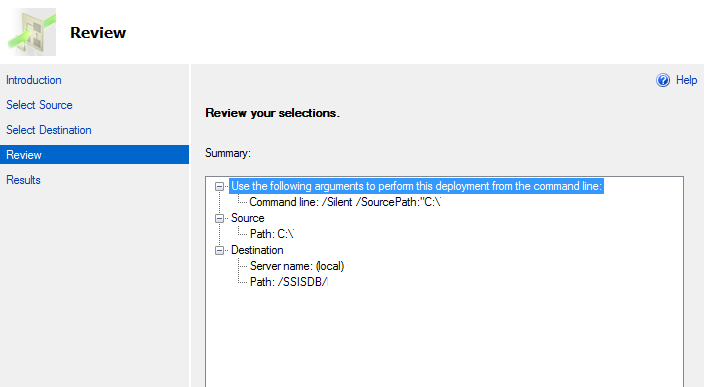

Step 4

After you select the destination path; it is then time for review. The review section will provide you with a great overview of the Source path of the file being deployed and the destination location.

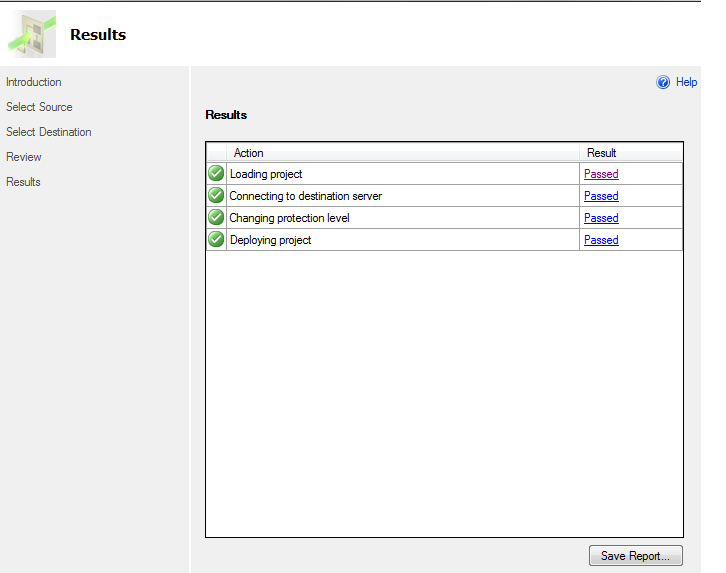

Step 5

Once verified and the deployment button is hit we are off to the races. The ability to have quick insight into the deployment and the methodology to save the report for future use is stellar. If your deployment did fail; at this step you would be able to dive into the error in the result pain on the right hand side.



Seems simple enough? The deployment method in SSIS 2012 has proved beneficial for myself and is a welcomed aspect. Earlier this year I completed a post on the utilization of PowerShell and how to deploy 2012 SSIS packages and that can be found here.

I tell you what; check out what my other colleagues have to say on something they learned recently around SSIS:


CollaborateImageOn a SQL Collaboration Quest

Four SQL professionals gathered from the four corners of the world to share their SQL knowledge with each other and with their readers: Mickey Stuewe from California, USA, Chris Yates from Kentucky, USA, Julie Koesmarno from Canberra, Australia, and Jeffrey Verheul from Rotterdam, The Netherlands. They invite you to join them on their quest as they ask each other questions and seek out the answers in this collaborative blog series. Along the way, they will also include other SQL professionals to join in the collaboration.

5 thoughts on “ISPACs – Got To Love Em

  1. Pingback: SQL Server Data Transferred to a SQLite Database Using SSIS | Mickey's T-SQL Ponderings

  2. Pingback: SSIS: Zipping files with WinRAR | SQL from the Trenches

  3. Indrajit Bose

    While I am doing the deployment using the Administrator Account, it worked fine, even its working with Agent Job (Administrator Account as owner of the job), TSQL and from Visual Studio with my ID. But while deploying the same file with my ID which have full Admin rights in the Windows server as well as in SQL Server also, Deployment Wizard did not launch and throws the error “To launch the Integration Services Deployment wizard, one of the components: Integration Services, Management Tools – Basic or SQL Server Data Tools has to be installed by the %SQL_PRODUCT_SHORT_NAME% Standard, Enterprise, Developer, or Evaluation Edition. To install a component, run SQL Server Setup and select the component name.” What extra privilege I need to put and at what location, is I at folder level access or where. Please help.

    1. Mitch Hendricks

      did you find a solution to this, I am getting the same thing, I upgraded a W7 install of MS SQL 2012 to 2014 with BIDS and what you have above is what I get when launching the deployment wizard. The 2012 ver still works.
